Our “NEW” Bagmaster® 250 or 400 Vertical Form, Fill, and Seal Bagging Machine is a state of the art, high speed bagging system that makes bags out of flat stock film, with the bag formed around the product. It is designed and engineered for use in non-food as well as food applications and uses polyethylene and supported clear or pre-printed films.

The Bagmaster® bagging machine controls architecture has been implemented in accordance with PackML and PackML Tags to provide standardized integration of upstream and downstream equipment. All of this leads to improved system performance and Overall Equipment Effectiveness for the end-user.

The Bagmaster® C295 vertical centerfold bagging system machine will fill product into the bag being formed through the side of the bag. This bagger can run bags from 2.5” x 2.5” up to 11.5” x 11.5” or longer with a double pull stroke. This produces a bag without a back seal which allows for full panel graphics enhancing market appearance as well as for printing on the front and/or back of the bag. This bagger comes with an adjustable film guide that allows film width changes without expensive forming tube tooling. Length is changed electronically through the touchscreen HMI. This bagger can be integrated with counters, weighers, thermal printers, and a heavy bag load shelf. Max speed is 45 bags per minute. Header and hole punch options make an attractive retail package. The bagger uses centerfold or pre-applied re-closeable zipper film and is specifically designed and engineered for heavy duty industrial applications. The C295 machine can be integrated with Batchmaster® Counters or Weighmaster® FAW scales to form a turnkey packaging system.

Bagmaster® controls including 10.4” color touchscreen; Painted, welded tubular steel machine frame; Servo motor-driven film pull belts and cross jaw; Web encoder; End-of-film sensor; Machine guarding with safety interlocks; Electrical synchronization with dosing system; Product-in-jaw safety circuit; Lined product catch plates above cross seal jaws; Bag air expellers; Product infeed chute; Interface for printer; Interface for take-away-conveyor

Up to 20” diameter, 3” core

220 VAC, 1 Phase, 60 Hz @ 10 Amps

80-100 psi, clean dry air

990mm (39”) wide x 1,345mm (53”) x 1,160mm (46”)

Width: 80mm - 295mm (3.2” – 11.5”)
Length: 75mm – 295mm (3” - 11.5”)

Registration mark sensor, warning beacon, hole punch, header seal, bag support shelf, thermal printer, perforation, tear notch, cUL listed electrical control panel, cell pack

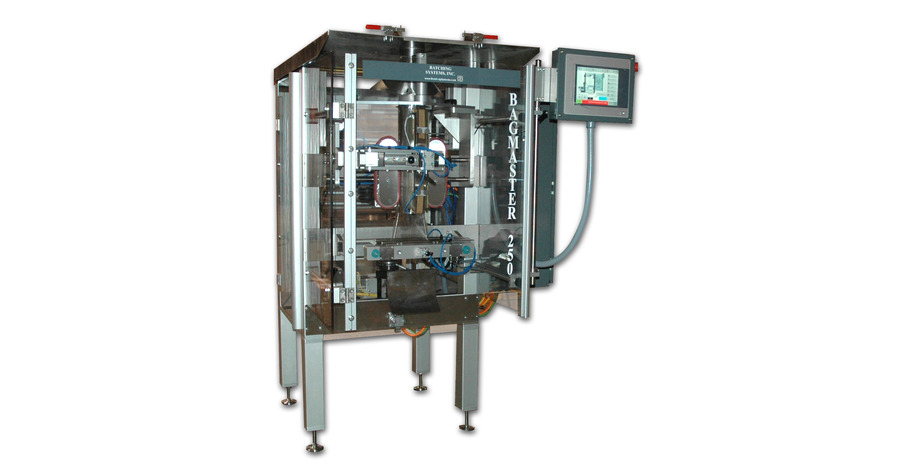

Conventional Vertical Form Fill and Seal bagger that can be provide with constant heat jaws or impulse heat jaws. Max bag width is 10” wide. Length is changed electronically through the touchscreen HMI. This bagger can be integrated with counters, weighers, thermal printers, and a heavy bag load shelf. Max bag speed is 65 bags per minute. Impulse heat jaws are for industrial product applications. The Bagmaster® bagging machine controls architecture has been implemented in accordance with PackML and PackML Tags to provide standardized integration of upstream and downstream equipment. All of this leads to improved system performance and Overall Equipment Effectiveness for the end-user.

Our bagging machines are configured to meet NEMA 12 (IP52) standards, Robust open frame design provides excellent access to the machine interior, Web transport system with servo motor driven friction pull belts, Quick-opening pull belt mechanism (pneumatically operated) for ease of material set-up and size change-over, Machine control via 10.4” color touch screen, including intuitive operator guidance, fault diagnostics with help text for trouble shooting, and production data acquisition, Program memory for 100 production recipes, Servo driven cross jaw movement, Product-in-jaw feature brings the machine to a stop if the seal bars do not close completely, Constant / resistance heat sealing system, Single film reel support with pneumatic film reel spindle, Motor powered packaging material unwind at rear of the bagging machine controlled via position monitoring of the dancer arm provides material infeed with precise web tension control, Semi-automatic web tracking adjustment (left/right correction) via touch screen powered by a DC gear motor, Forming set for one bag size (pillow style), size TBD, Electrical synchronization for dosing system (weigher, counter, auger, etc.)

Film width: 510mm maximum (20”)
Outside roll diameter: 508mm maximum (20”)
Roll core diameter: 73-77mm (3”)

220/480/575V, 1PH, 60Hz OR 220-575V, 3PH, 60Hz 7KVA

80-100 psi, clean dry air

3’5: wide x 4’8” deep x 4’5” tall

Width: 1,354mm (53”) Approximately 1,400 lbs.
Depth: 1,956mm (77”) - with max. Ø film roll
Height: 1,443mm (57”)

Programmable warning beacon, Automatic web tracking, Side gusset device, Flat-bottom bag device, Tear notch device for easy bag opening, Hole punch (round, sombrero, etc.), Poly seal system (impulse), Anti-static bar and nozzle options, Adjustable bag discharge chute, Bag support and eject unit at discharge, Gas flush accessories with integrated controls, Filling tube dust extraction, Air relief film perforator, Integration of a variety of thermal transfer printers, Additional emergency stop switch at rear of machine, cUL listed electrical control panel, Photoelectric registration mark sensor, Foam rubber air expeller, Product catch plates mounted atop cross seal jaws, Product drip pan above machine, Frame extensions to increase machine height

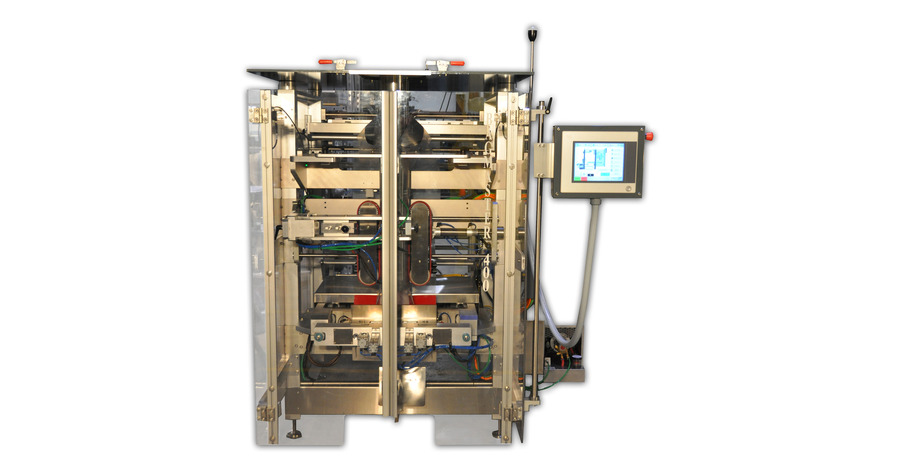

Conventional Vertical Form Fill and Seal bagger with a that can be provide with constant heat jaws or impulse heat jaws. Max bag width is 16” wide & the length can be changed electronically through the touchscreen HMI. This bagger can be integrated with counters, weighers, thermal printers, and a heavy bag load shelf. Max bag speed is 60 bags per minute. Impulse heat jaws are for industrial product applications. The Bagmaster® bagging machine controls architecture has been implemented in accordance with PackML and PackML Tags to provide standardized integration of upstream and downstream equipment. All of this leads to improved system performance and Overall Equipment Effectiveness for the end-user. Share's similar machine specifications as theBagmaster® 250

Our bagging machines are configured to meet NEMA 12 (IP52) standards, Robust open frame design provides excellent access to the machine interior, Web transport system with servo motor driven friction pull belts, Quick-opening pull belt mechanism (pneumatically operated) for ease of material set-up and size change-over, Machine control via 10.4” color touch screen, including intuitive operator guidance, fault diagnostics with help text for trouble shooting, and production data acquisition, Program memory for 100 production recipes, Servo driven cross jaw movement, Product-in-jaw feature brings the machine to a stop if the seal bars do not close completely, Constant / resistance heat sealing system, Single film reel support with pneumatic film reel spindle, Motor powered packaging material unwind at rear of the bagging machine controlled via position monitoring of the dancer arm provides material infeed with precise web tension control, Semi-automatic web tracking adjustment (left/right correction) via touch screen powered by a DC gear motor, Forming set for one bag size (pillow style), size TBD, Electrical synchronization for dosing system (weigher, counter, auger, etc.)

Film width: 510mm maximum (20”)
Stand-up: width min. 40mm (1.5”), max. 220mm (9.0”)
Roll core diameter: 73-77mm (3”)

220/480/575V, 1PH, 60Hz OR 220-575V, 3PH, 60Hz 7KVA

80-100 psi, clean dry air

3’5: wide x 4’8” deep x 4’5” tall

Film width: 840mm maximum (33”)
Outside roll diameter: 508mm maximum (20”)
Roll core diameter: 73-77mm (3”)

Programmable warning beacon, Automatic web tracking, Side gusset device, Flat-bottom bag device, Tear notch device for easy bag opening, Hole punch (round, sombrero, etc.), Poly seal system (impulse), Anti-static bar and nozzle options, Adjustable bag discharge chute, Bag support and eject unit at discharge, Gas flush accessories with integrated controls, Filling tube dust extraction, Air relief film perforator, Integration of a variety of thermal transfer printers, Additional emergency stop switch at rear of machine, cUL listed electrical control panel, Photoelectric registration mark sensor, Foam rubber air expeller, Product catch plates mounted atop cross seal jaws, Product drip pan above machine, Frame extensions to increase machine height
