The Weighmaster® FAW is a single head bowl fed scale capable of accurately delivering finished batches at rates that meet or exceed bulky dual head in‐line scales in a much smaller, portable footprint. High output speeds result from patented dual chamber accumulation, while outstanding accuracy is due to our unique out of tolerance batch reject system.

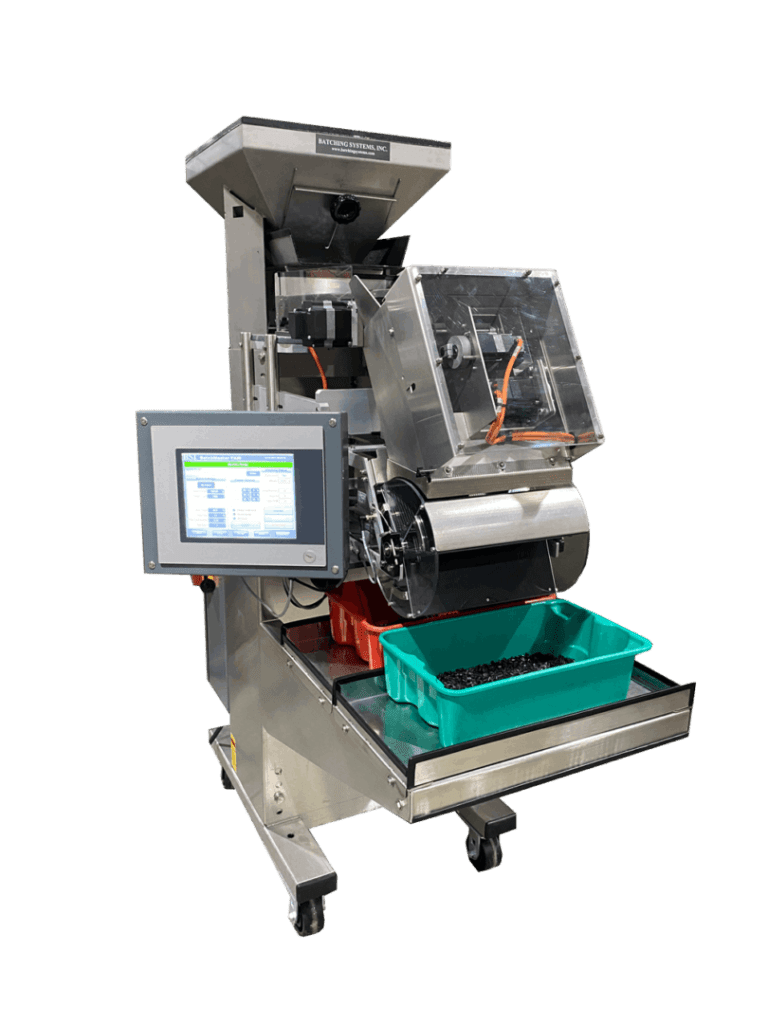

FAW Beltfeed Rotary
FAW-TR Tray Feed with Remote Load Cell

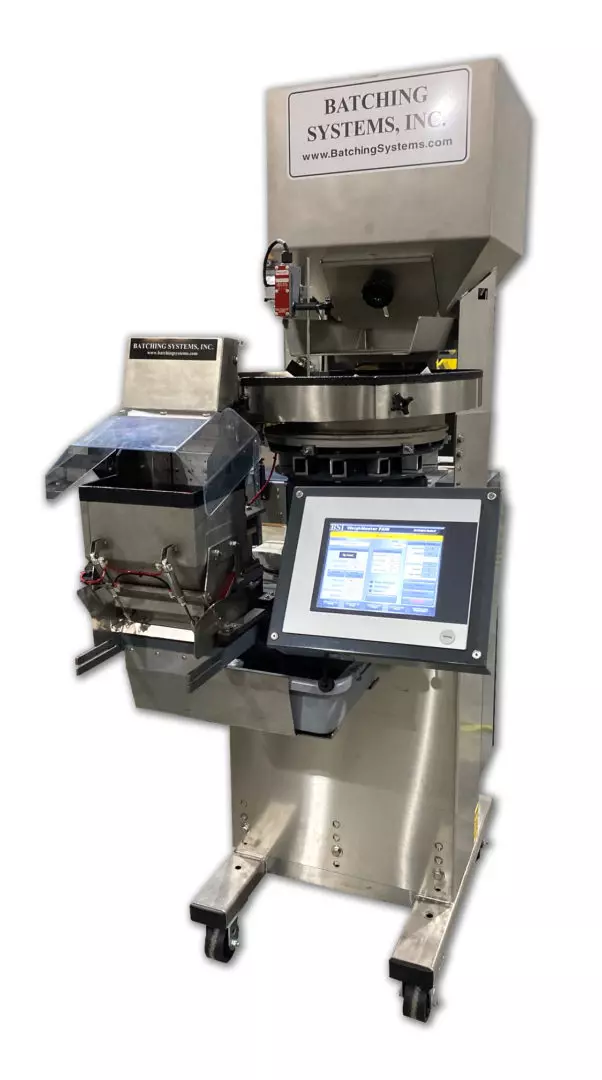

Weighmaster FAW 24
Standard Features
Patented dual chamber product accumulation, continuous run operation, dual output bulk-fine feeder bowl, to-the-piece batch top off, out of tolerance batch reject feature, weight-to-piece converter, storable set-up parameters, no changeover tooling, self-diagnostics with remote diagnostics capability, integrated controls and remote network capability. Ideal for higher count batches of hard goods to include fasteners, hardware, sporting goods, pet supplies and medical or dental devices
Power Requirements
120 VAC, 1 Phase, 60 Hz @ 15 Amps
Available Configurations
FAW24 bowl feed
FAW24-R bowl feed with remote load cell
FAW-B belt feed
FAW-BR belt feed with remote load cell
FAW-T tray feed
FAW-TR tray feed with remote load cell for large batches
Medical and dental devices, food, toys, fasteners, jewelry crafts and beads, aerospace hardware, pet supplies, sporting goods, plumbing, electronics, candy, tablets, rings, etc.
Air Requirements
No air or gate sensors are required for FAW Belt Feed or Tray Feed. All movements are controlled and verified with stepper motors. FAW24 Bowl Feed and FAW24-R require 80-100 psi, clean dry air
Footprint
37” wide x 47” deep with standard hopper. Height varies depending on configuration and adjustment
Available Feeder Bowls
24EGV/DO: 24" OD with dual axis high-speed feeder All bowls are the dual output design with bulk feed for 90-95% batch accumulation and a singulated to-the-piece top-off feed. Bowls are configured to include Ultra-liner for part protection and noise abatement and a conical dissipater for gentle efficient product flow.
Weighmaster® Weighers
Weighmaster® Fast Automatic Weigher
Weighmaster® Dual Fast Automatic Weigher Filling Cartons
Small foot print that can weigh a wide variety of shapes and sizes with no tooling. Weigh “count” or weigh batches by pounds, ounces, kilograms, or grams.
Quick Changeover
Typical product changeover of 2 minutes or less. Recipe set ups can be saved on system or remote network. Bar code scanner can be added for quicker loading of saved recipes.
Versatility
System integration to any type of packaging machine. Designed for short or long production runs.
Ergonomics
Eliminate costly repetitive motion injuries by automating your process. Reduce heavy lifting.
Speed
Continuous product feeding with patented pre-accumulation during top off allows the FAW to run twice as fast as single head tray feeders. Up to 25 cycles per minute. Multiple systems can be linked together for additional speed.
Cost Savings & Value
Decrease or eliminate labor, waste, and rework. Increased output for all your filling needs resulting in cost effective, efficiently filled packages.
Accuracy
High resolution weigh cell plus auto reject of out of tolerance batches before they are packaged. Standard accuracy is ‐0 plus less than 0.5%.
State of the Art Electronics
Calculate weight in real time while filtering out noise and vibration. Large 10.4” Industrial touch screen with simple control settings for easy operation.
